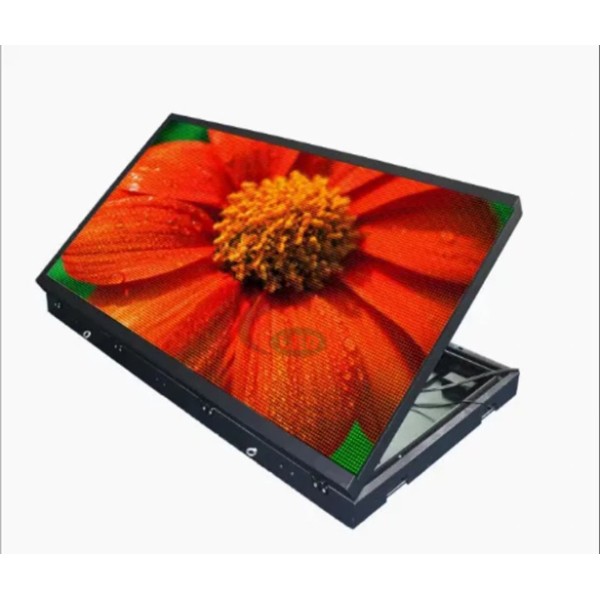

outdoor p2.5 cabinet front service led display with screen size (WxH) 2560mm x 640mm
$1,700.00
Product Code: ost-p2.5
Stock In Stock
Product Description
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
Product Parameter
| module details | ||||||
| led lamp | RS-E1415RGB-FCN, copper wire, iron substrate | |||||
| module size | 320x160mm | module resolution | 128x64=8192 dots | |||
| signal port | HUB75 | pixel density | 160000 dots/sqm | |||
| view angle | (H/V)140 /140 | nearest view distance | >2m | |||
| scan mode | 16s | refresh rate | 1920Hz | |||
| cabinet details | ||||||
| cabinet size | waterproof front open iron cabinet 1280x640x180mm with 30mm protection edges around the screen, two cabinets for W*H 2560x640mm screen, whole display size with protection edges is W*H 2620x700mm | |||||
| brightness | >5000 cd | gray scale | ≥16.7M color | |||
| color processing | R(1024)×G(1024)×B(1024) | IP level: waterproof cabinet IP65 on both side, simple steel cabinet (front/back) IP65 | ||||
| receiving card | by default Huidu R716 | receiving card quantity | 2(pcs) | |||
| power supply | CE certified 200W power supply support 110/220V AC input | power supply quantity | 8 (pcs) | |||
| master controller | Huidu C16L as master control which supports mobile app remote control, laptop wifi control, U disk control | C16L quantity | 1 (pcs) | |||
| input voltage | switchable power supply, accept 110/220V AC input | |||||
| max/average power consumption | < 750/250 W/sqm | |||||
| working humidity | 10%～95% | working temperature | -20℃ ～ +50℃ | |||
| maintenance | cabinet front service | Malfunction Dot Rate | less than 0.0001 | |||
| Life-span | 100,000 hours | MTBF( mean time between failures) | 5000 hours | |||
| remark 1 | the whole led display evaluated NW 80 Kg, evaluated woodencase package (2 in 1) L*W*H 11390x500x850mm, GW is about 100KG | |||||
| remark 2 | we offer 1 pcs 5m length AC input power cable with aviation plug, 2 pcs led modules, 2 pcs module power cables, 2 pcs module flat cables some led lamps and driver ic as free spares. | |||||
