indoor flexible led modules for curved led display

Categories Cart Account Search Recent View Go to Top



The flexible led modules combined with customized arc-shape cabinets can be used for making special artistic shapes led display.


We also can use flexible led modules with bendable iron sheets and pipes to make indoor inner curved or outter curved led video wall, clients don't have to measure accurate curvature of the wall at the led screen installation site , because clients can adjust the pipes and iron sheets installation to make led display installation fit the wall, the whole installation thickness is within 55mm, and there are no welding operation during installation, all the frame are fixed on the wall by screws.

Indoor flexible led modules specifications
item	p5	p4	p3.076	p2.5	p2	p1.86	p1.538	p1.25
module size	320 x 160 mm
scan mode	16s	20s	26s	32s	40s	43s	52s	64s
pixel density	40000 dots/sqm	62500 dots/sqm	105625 dots/sqm	160000 dots/sqm	250000 dots/sqm	289444 dots/sqm	422500 dots/sqm	640000 dots/sqm
signal port	HUB75							HUB320
module surface	Flexible led modules are with SMD surface by default, we strongly suggest clients accept GOB process for p2.5,p2,p1.86,p1.538,p1.25 modules
refresh rate	3840Hz
brightness	<800 cd/sqm				<600 cd/sqm
power supply loading suggestion	Considering the module power cable length and module max power consumption, we suggest 200W power supply load 6 pcs modules.
maintenance	The flexible led modules have built-in strong magnets on bottom for front installation and service.

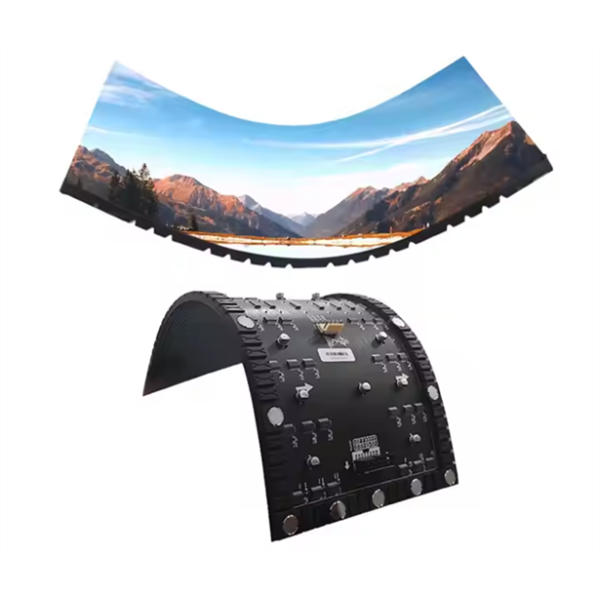

indoor 320x160mm flexible led module
